4Gloss Black Adhesive Sensors A Wireless Dash Display With Audio
Product Code: DAS470SBLK

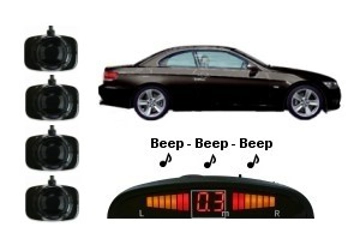

4Gloss Black Adhesive Sensors A Wireless Dash Display With Audio - Description
If you are looking for an easy DIY parking sensor system then these adhesive sensors maybe just what you are looking for. These sensors stick onto the rear of the car so you do not need to drill holes in the bumper, but they work just the same as traditional ultrasonic sensors.
| Kit Contents
|
How it works
The system
| Stage | Distance | Awareness | Alarm |
| 1 | 200 - 160cm | Safe Mode | No |
| 2 | 150 - 100cm | Safe Mode | Bi----Bi----Bi |
| 3 | 90 - 50cm | Alarm Mode | Bi--Bi--Bi |
| 4 | 40 - 30cm | Danger Mode | Bi-Bi-B |
| 5 | 30 - 0cm | Stop | Bi---------- |
Technical Specification
- Rated voltage (range) DC12V
- Power 3.6W
- Detecting Angle H>60, V>60 degreese
- Detection Distance 0.3~2m
- Sensor Frequency 315MHz/433MHz
- Working temperature of control box -20 ~+70
| Some Useful Measurement Information (measurements are approximate and not guaranteed) | |
| Component | Length x Width x Depth |
| Size of Buzzer | 59mm x 40mm x 17mm |
| Size of Processor | 96mm x 68mm x 26mm |
| Size of Ultrasonic Adhesive Sensors | 30mm x 40mm x 18mm |
| Length of Sensors Cabling | 2m |
| Length of Cabling for Buzzer | 2m |
| |
Maintenance
No routine maintenance or adjustment is required. Dirt, frost or snow accumulated on the sensors may cause the system to activate incorrectly. Clean carefully with a soft cloth. Do not use chemicals or spirits. Applying hot water in frozen conditions may damage the sensors. The sensors can be washed carefully with warm soapy water
